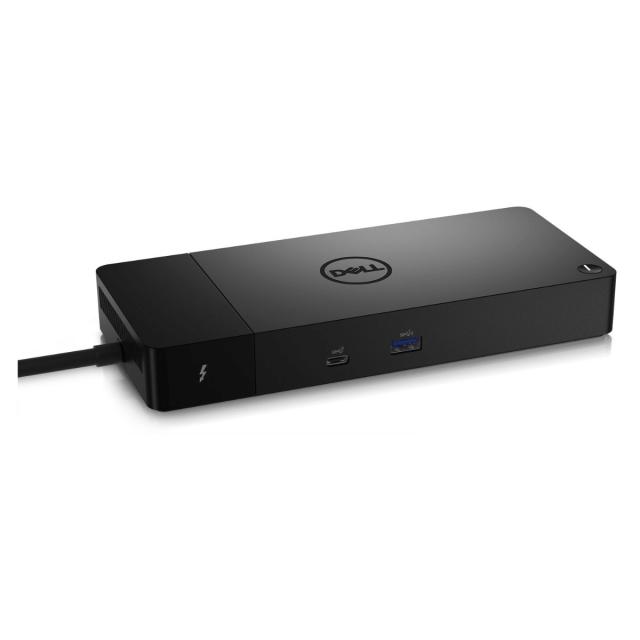

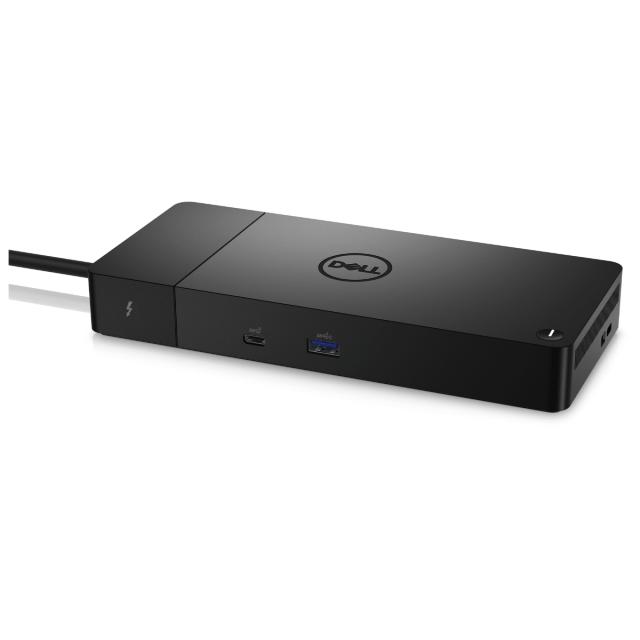

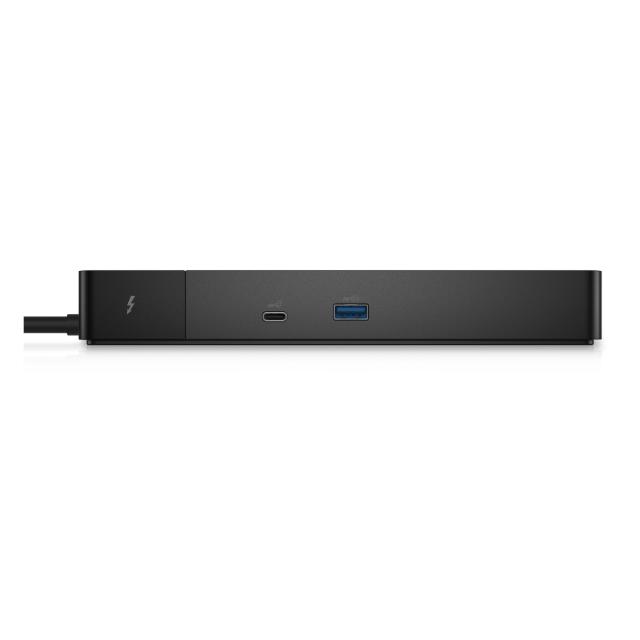

DELL WD22TB4 Thunderbolt 180W



100+ In stock
100+ expected: Mon 8 Jul 2024
EAN: 5397184635629

Product Description

Featuring fast charging capabilities and the highest number of ports. Seamlessly connect multiple 4K devices and Thunderbolt peripherals, providing an expansive and efficient workspace for your tasks. Experience uninterrupted workflow and enhanced performance with the power of Thunderbolt 4 technology.

Display Support
For a HBR2* PC
(3) FHD @ 60Hz
(3) QHD @ 60Hz
(2) 4K @ 60Hz

For a HBR3 PC
(4) FHD @ 60Hz
(4) QHD @ 60Hz
(2) 4K @ 60Hz

For HBR3 PC supporting Display Stream Compression
(4) 4K @60Hz

Max Resolution
5K @ 60Hz with HBR2/HBR3 ThunderboltTM systems

8K @ 60Hz with HBR3 ThunderboltTM systems supporting Display Stream Compression

Video Interfaces
(2) Full size DP1.4
HDMI 2.0
USB-C Multi-function DisplayPort
(2) Thunderbolt™ 4 USB-C

USB Ports
USB-A: (3) USB 3.2 Gen 1 (1 with PowerShare)
USB-C: (2) USB 3.2 Gen 2 (1 with DisplayPort 1.4 Alt Mode)

Gigabit Ethernet

Security Slot Type(cable lock sold separately)
1 x Kensington lock slot
1 x Noble Wedge lock slot

LED Indicators
Power Adapter LED
Power Button LED
Cable LED Indicators

Power Adapter 180 Watt AC with up to 130 Watt power delivery to ell Commercial Notebooks

Up to 90 Watts power delivery to non-Dell systems

Dimension and Weight
205mm x 90mm x 29mm
8.07in x 3.54in x 1.14in


Operating Systems
Windows 10
Windows 11
Ubuntu 20.04 and later version
Certified by Apple® to work with Mac devices

Systems Management
Wireless vPro supported by Notebook tablet, or workstation
Kernel Direct Memory Access (DMA) protection

Management Features
PXE Boot
MAC address pass-through
Port Disablement
Wake-On-Dock button
Dell Command Update (DCU)
Error messages and dock event notifications

What’s in the Box
W22TB4 docking station with ThunderboltTM cable attached 180W Power Adapter
Documentation (Quick Start Guide, Safety, Environment and Regulatory information)

Enhanced Productivity
Use a single cable for multiple displays and peripherals

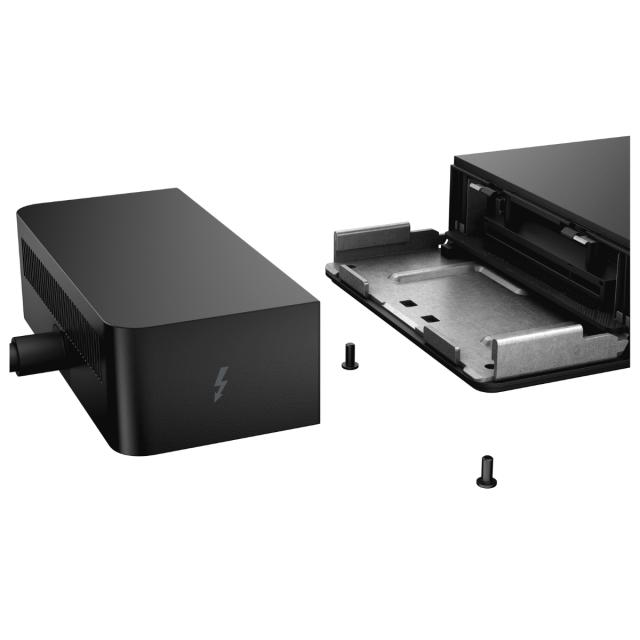

Flexible Placement
Optional VESA Mount allows secure mounting behind monitors or under desks

High-speed Data Transfer
Enjoy 40 GB/s data transfer for optimal peripheral connectivity

Efficient Firmware Updates
Dell Client Command Suite and Microsoft System Center Configuration Manager enable quick, seamless updates

Minimal Rebooting
Firmware updates take just 5-7 minutes without system rebooting

A single dock base supports three use cases
via single ThunderboltTM cable, single USB-C cable, or dual USB-C cable
