Product Description
- Logitech Group. Product type: Group video conferencing system. HD type: Full HD, Supported video modes: 1080p, Maximum frame rate: 30 fps. Field of view (FOV) angle: 90°, Digital zoom: 10x. Bluetooth, Product colour: Black, Grey
-

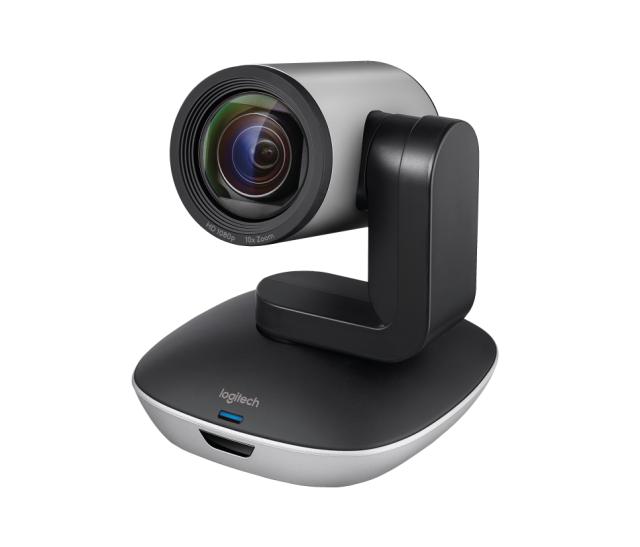

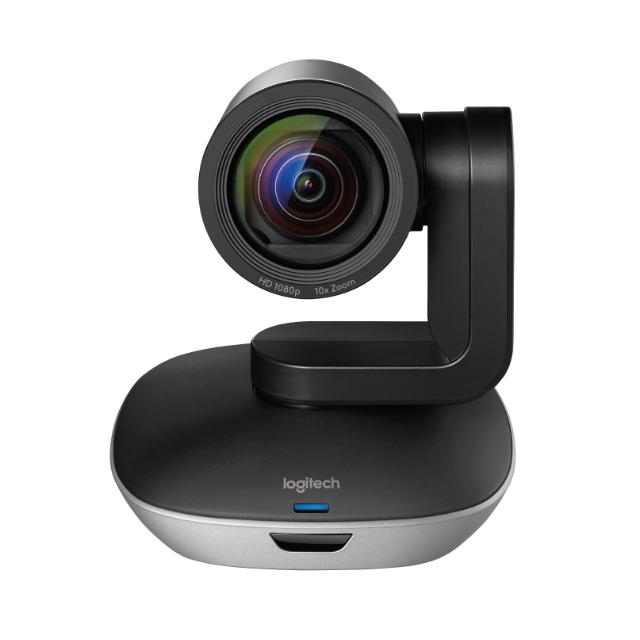

CAMERA
- Smooth motorized pan, tilt and zoom, controlled from remote or console
- 260° pan, 130° tilt
- 10x lossless HD zoom
- 90° Field of View Full HD 1080p 30fps
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Autofocus
- 5 camera presets
- Far-end control (PTZ) of ConferenceCam products
- ZEISS lens certification
- Kensington security slot
- LED to confirm video streaming
- Standard tripod thread
- Dockable
- 8.5m/28-foot range
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Ultra-wideband audio
- Bluetooth and NFC wireless technology
- LCD for caller ID, call duration and other functional response
- LEDs for speakerphone streaming, mute, hold, and Bluetooth wireless pairing
- Touch controls for call answer/end, volume and mute, Bluetooth – plus camera PTZ, “home” preset and far end control
- Microphones (Tx):
- Four omni-directional microphones supporting 20-foot diameter range
- Frequency response: 100Hz – 11KHz
- Sensitivity: -28dB +/-3dB
- Distortion: <1% @ 1KHz at 106dB
- Speakers (Rx):
- Frequency response: 120Hz – 14KHz
- Sensitivity: 83dBSPL +/-3dB at 1W/1M
- Max output: 91dBSPL
- Distortion: <5% from 200Hz
- Kensington security slot
- Central mountable hub for connection of all components
- Included adhesive solution for under-table mounting
- Two cables for connection between hub and camera/speakerphone (Length: 5m/16’)
- One USB cable for connection to PC/Mac (Length: 3m/6.6’)
- AC Power adapter (Length: 3m/9.8’)
- Dual purpose mount for wall placement or for elevating the camera on a table
- Camera
130 x 170 x 138 mm
5.1 x 7 x 5.4”
585g / 21oz - Remote
50 x 120 x 12 mm
2 x 5 x 0.5”
51g / 2oz - Speakerphone
240 x 65 x 240 mm
9.5 x 2.5 x 9.5”
1223g / 43oz - Package
500 x 152 x 310 mm
19.75 x 6 x 12.25”
4.1kgs / 9lbs - Hub
94 x 34 x 74 mm
3.75 x 1.3 x 2.9”
83g / 3oz - Wall/Table Mount
210 x 120 x 99 mm
8.27 x 4.72 x 3.90”
255g / 8.99 oz - Expansion Mics
83 x 83 x 21 mm
3.3 x 3.3 x 0.83”
230g / 8oz

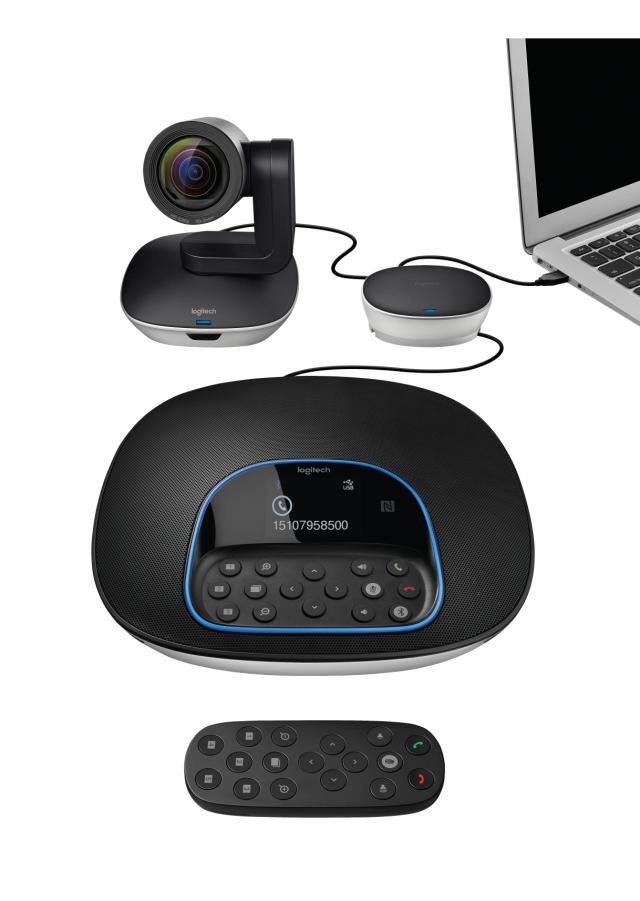

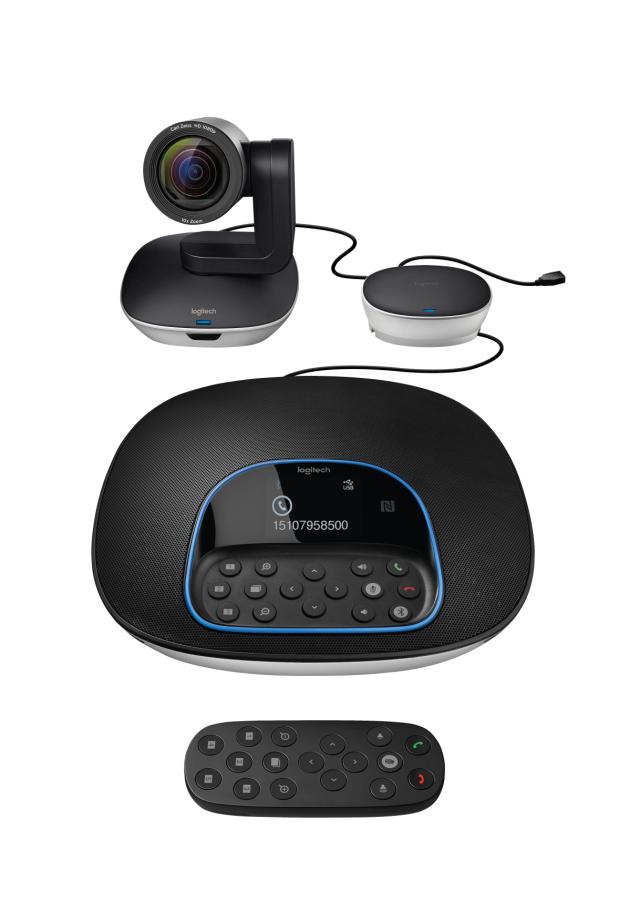

Camera, speakerphone, remote control, two 5m/16.4’ cables for connection between speakerphone and hub and camera and hub, one 3m/9.8’ meter cable between hub and PC, Velcro for cable management, Velcro for hub to table securing, powered hub, power adapter with regional plugs, mount, quick start guide.
-
VIDEO
HD 1080p video quality at 30 frames-per-second
Brings life-like full HD video to conference calls, enabling expressions, non-verbal cues, and movements to be seen clearly.
H.264 with Scalable Video Coding (SVC) and UVC 1.5
Preserves PC processing and battery power by putting video processing within the camera, adjusting dynamically to the available bitstream. The result is a smoother video stream in applications like Microsoft® Lync® 2013, Skype for Business, and in Windows® 8 and Windows® 10.
90° field of view with mechanical 260° pan and 130° tilt
The generously wide field of view and silky smooth pan and tilt controls enhance collaboration by making it easy to see everyone in the room.
10x lossless HD zoom
Zero in on close-ups of objects and whiteboard content with outstanding detail and clarity.
Autofocus
High-precision lens automatically focuses on people and objects to deliver razor-sharp resolution wherever the lens is pointed.
ZEISS® lens certification
Logitech designs and manufactures all ConferenceCam lenses to the highest technical standards to produce optical components of outstanding quality as certified by ZEISS.
Far-end camera control
Operate camera pan, tilt, and zoom functions of another Logitech ConferenceCam or Webcam C930e in the other location.
5 camera presets
Multiple camera presets make it easy to frame and focus the lens on frequently used views — such as the conference table, whiteboard, and close-ups — and quickly return to each view at the touch of a button.
Plug-and-play camera setup
Simply connect the camera to the powered hub with a 4.9m/16’ cable provided to get up and running in a snap.
AUDIO
Full-duplex speakerphone
Hear and be heard with lifelike sound that’s crisp, clear, and highly intelligible. Plus, the cast metal base console is loaded with advanced audio features and intuitive controls.
Spacious audio
Conference participants can converse within a 6m/20’ diameter around the speakerphone and be heard so clearly by remote participants that it seems like conversations are happening in the same room.
Optional expansion mics
Expand the conversation area from 6m/20’ to 8.5m/28’ so that even those away from the speakerphone can be clearly heard. Microphones, sold in pairs, are automatically recognized and configured by simply plugging them into the GROUP speakerphone.
Beamforming technology with four omni-directional mics
Conversations sound realistic and natural by minimizing sound reflections (reverb) and distracting audio artifacts.
Acoustic echo cancellation
Advanced acoustic engineering reduces echo, making calls sound more natural.
Noise reduction technology
Ambient noises and other distracting tones are suppressed to support comfortable, natural-sounding conversation on both ends of the call.
HD audio
High-bandwidth audio reproduces vocal tones with exceptional quality, enabling people on both sides of the call to enjoy a lifelike communication experience.
Visual call status indicator
Onboard LEDs flash to provide visual alerts when on a call, when there’s an incoming call, and when an incoming call is muted.
LCD displays Caller ID and other info
View call-related info (Caller ID, call duration, etc.) and speakerphone/camera function indicators (volume control, etc.) on the LCD display screen.
Plug-and-play speakerphone setup
Simply plug the speakerphone into the powered hub with the supplied 4.9m/16’ cable to get up and running in no time.
CONNECTIVITY AND USAGE
Tight integration with top cloud communication apps
Logitech partners with the top communication developers to ensure the most integrated and seamless experience when using GROUP.
Compatible with Mac® and PC
Simply connect a PC or Mac® to conduct meetings within the user’s own familiar computing environment.
Works with most UC and video conferencing applications
Users are free to use the desktop video conferencing application of their choice.
Bluetooth wireless technology and Near Field Communication (NFC) technology
Connect the speakerphone to a Bluetooth wireless technology enabled device for great-sounding audio calls, or pair NFC-enabled mobile devices by simply bringing them close together.
Professional-grade certifications
Leading business certifications (Optimized for Microsoft® Lync® 2013, Certified for Skype for Business, Cisco Jabber® and WebEx® compatible) and enhanced integration with Logitech Collaboration Program (LCP) members ensure an integrated experience with most business-grade video conferencing platforms.
Multiple camera mounting options and device setup configurations
Set up the conference room the way you want with up to a 9.8m/32’ range between camera and speaker. Use the camera on the table or mount it on the wall with included hardware. The bottom of the camera is designed with a standard tripod thread for added versatility.
Dockable remote control
Operate camera pan, tilt and zoom, volume up/down and answer/hang-up functions on the base speakerphone console or with remote control that docks in console when not in use.
